In the commercial market of high-power output DC power supply, the mainstream product features air-cooled, 3U height and 15kW capacity, how to attract users' attention with breakthrough features and performances?

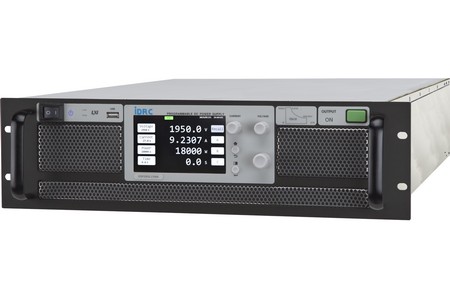

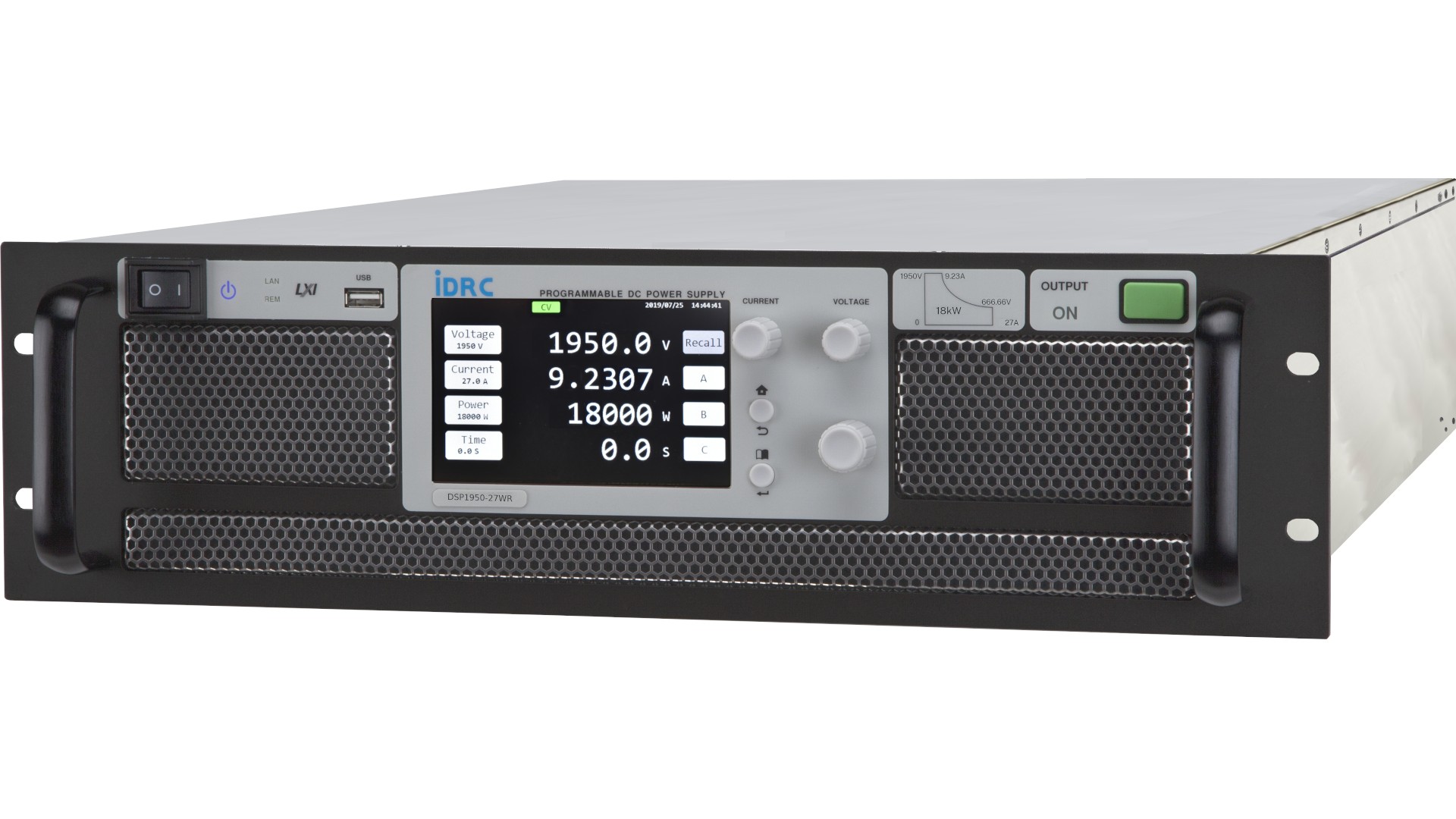

iDRC believes that, products’ value are created by outstanding functions and performances. The following is the briefly description for the iDRC DSP-WR.
1. Wide range input: 3 phase 180V~460VAC(47~63Hz). Suitable to be used worldwide.
2. Wide range output: 3 times output of voltage and current against traditional products.
3. Low ripple and fast response by multi-phase and interleave technology, the working frequency up to MHz.
4. With APFC(Active Power Factor Correction), the PF can be up to 0.99 at AC480V 3P4W input.
5. Excellent efficiency is nearly 96 %.
6. Settable CV, CC or CP mode working priority.
7. Equips internal resistance setting function so as to simulate the charging/discharging mode of battery.
