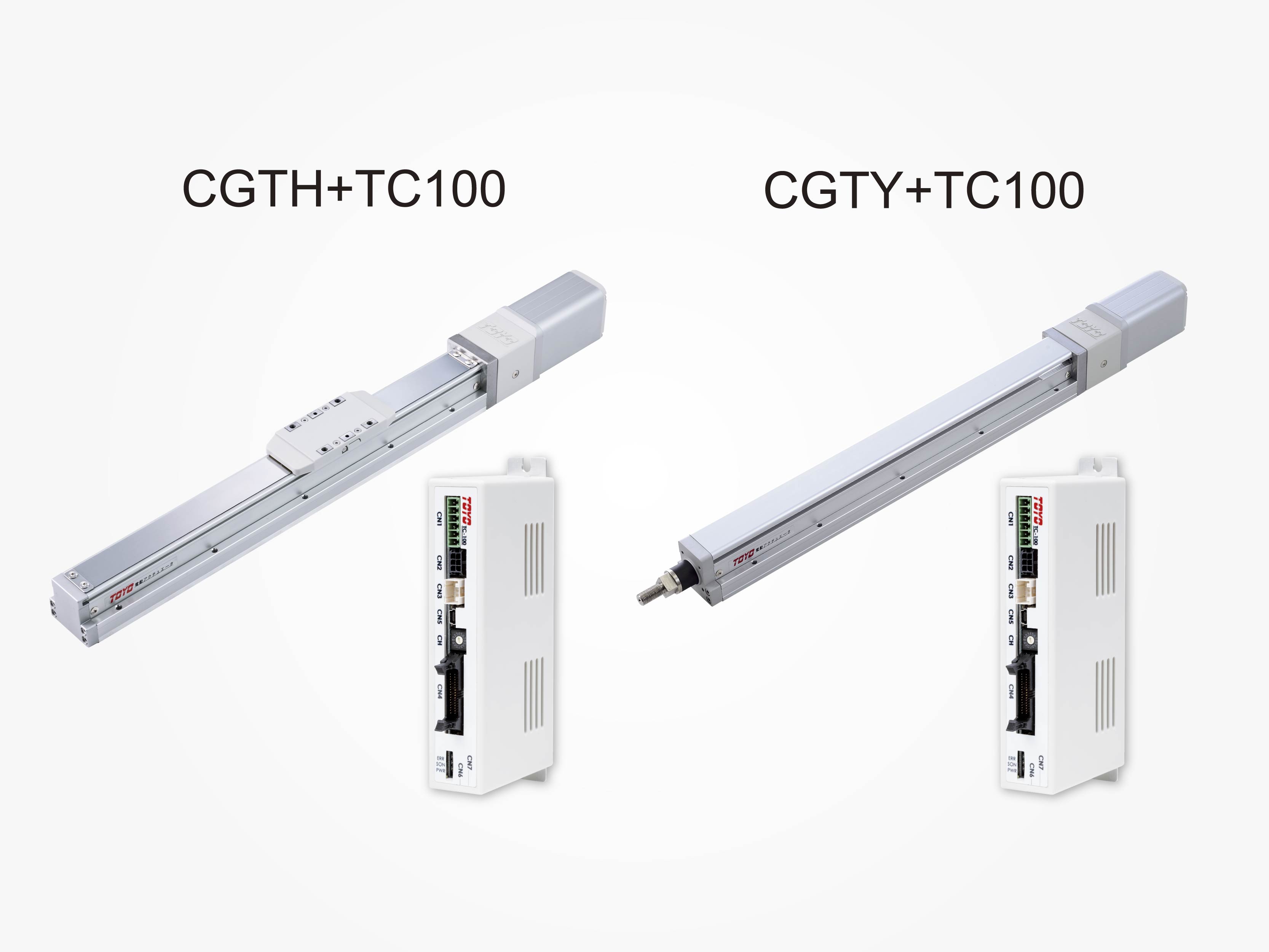

CGTH /CGTY includes stepper servo motor in Taiwan' first , save customers assembled motor time.the controller in CGTH/CGTY robot is the TC-100, the control mode includes pulse (Pulse) control, I / O control, communication control, the industry's first control of the 3-in-1 system.
After slide into the body, and then to the processing machine for grinding, the body travel 800mm parallelism and yawing can be within ± 0.02mm. Than the general slide and other high straightness is good, more suitable for use in optical detection or visual inspection.
The robot body has fixed hole, can be installed from top to bottom or from bottom to top, the bottom of the robot body has positioning pin hole, saving client assembly time.
The controller TC-100 in our Robot,it can use the way of RS-485, one time can control 16 machines, It can be set the information, control the movement and monitor the motor situation. It is very convenient.
