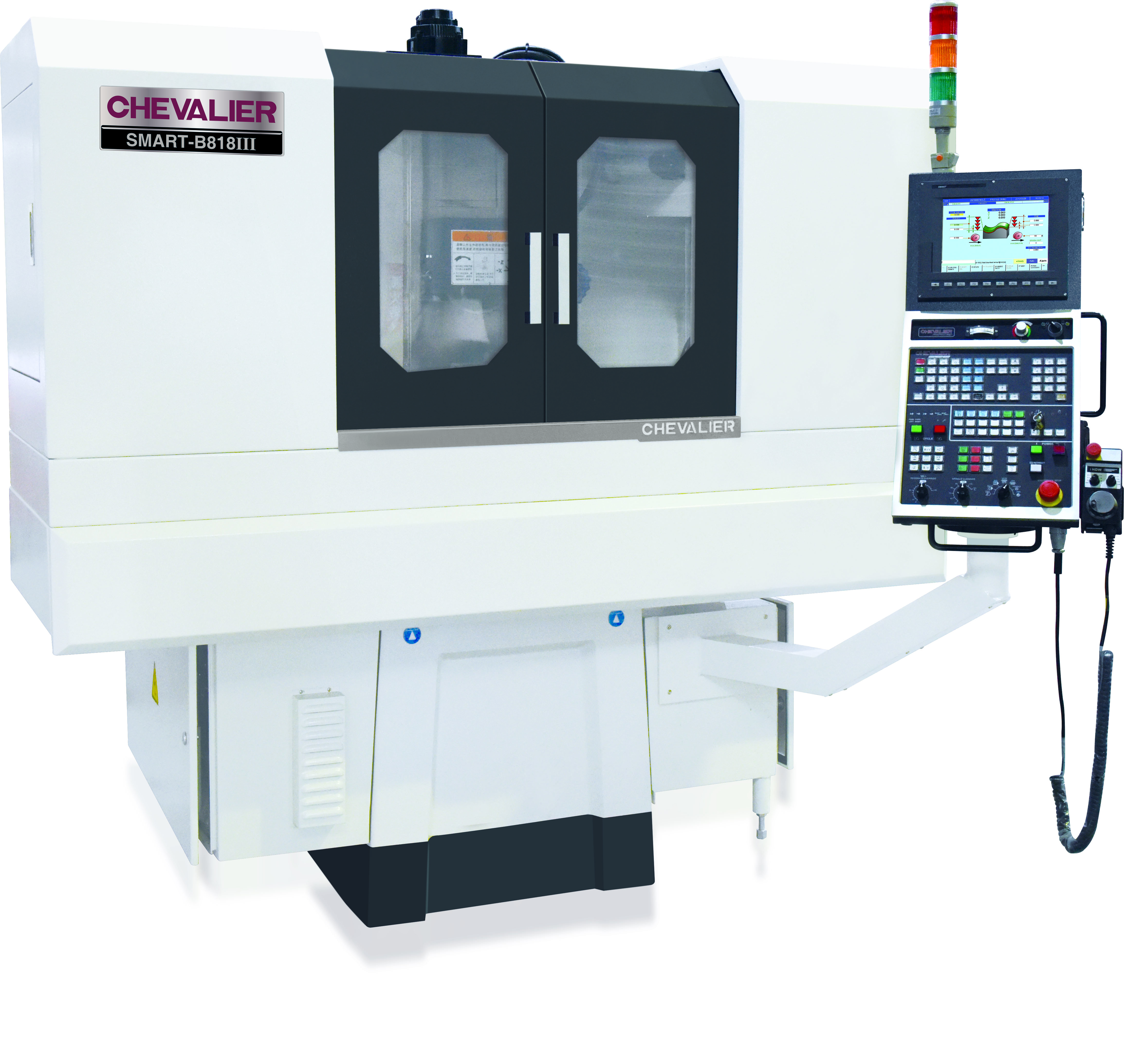

SMART-B818Ⅲprovides new functions and optional accessories: Load measuring, manual dynamic balancing, in-process height measuring system, intelligent cloud and 15” touch-screen control panel. The SMART-III is capable of machining “mirror” surface finishes on highly and accurately ground workpieces with micro-finish of 5 RMS. Wheel spindle speed: SMART-B818III--1,000~7,000rpm; Table size (W x L): SMART-B818III--200 x 460mm (8”x18”); Wheel spindle power: SMART-B818III--up to 3kW (4HP); The SMART’s movements are programmable in increments of 0.001mm
Grinding wheel size (OD x Width x Bore): SMART-B818III-- 203 x 12.7 x 31.75mm.
The SMART’s PC-based control, combined with a user-friendly conversational Task-Link function, makes it easy to learn and operate. Constant contact dressing programs are provided to increase the dressing efficiency.
