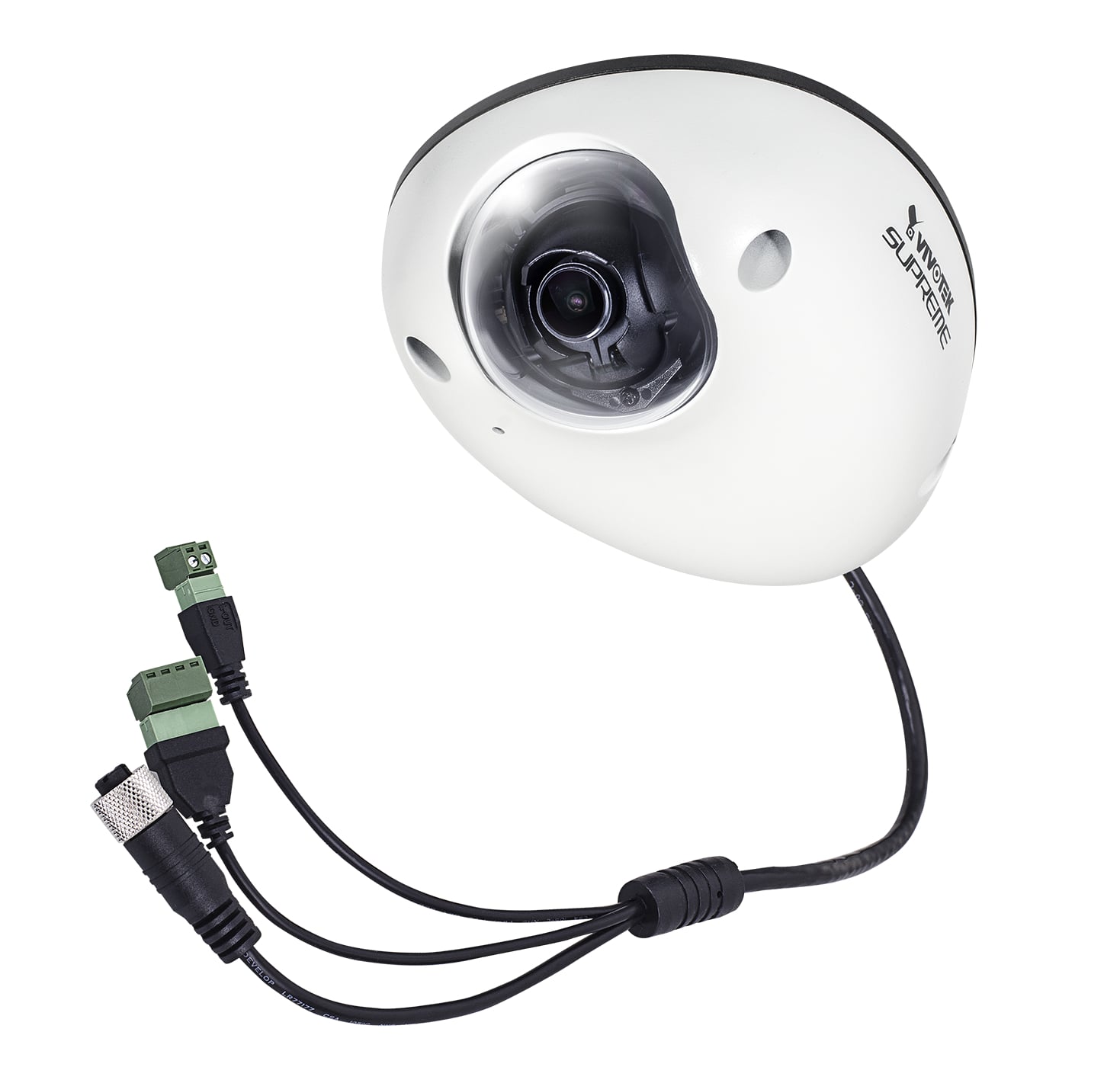

2-Megapixel Mobile Dome Camera
Industry type:Electronics and communication
Product model number:MD8563-EH
VIVOTEK INC.
award 3

VIVOTEK’s MD8563-EH is a MIT, 2-MP mobile dome network camera geared toward transportation applications. With full EN50155 TX compliance and IP67-rated design, the camera can withstand shocks, humidity, dust, and temperature fluctuations to provide stable video during vehicle movement. Further, the IK10-rated housing provides effective protection from vandalism. High-resolution image and protective-housing endow the MD8563-EH to maximize passenger safety and optimize mobile surveillance.
Featuring the Wide Dynamic Range Technology, WDR Pro, the MD8563-EH provides improved visibility in high-contrast environments. In addition, 3D Noise Reduction Technology enables the camera to capture clear video under low-light conditions and reduce bandwidth from sensor noise. Taken together, these features allow users to enjoy an increased level of image detail in bright as well as low-light environments.
Employing VIVOTEK’s Smart Stream II, the MD8563-EH can reduce both bandwidth and storage consumption by up to 50% while maintaining high standards of image quality. PoE (Power-over-Ethernet) allows the camera to be operated and powered with a single Ethernet cable, giving greater ease of installation. The camera is also equipped with a MicroSD/SDHC/SDXC card slot for local recording to facilitate on-board storage and data portability. And to further add to the flexibility of this camera, in corridor scenarios, its video rotation feature can provide wider vertical coverage for more depth and a larger useful field of view.

Key Features
- Made in Taiwan
- 2-Megapixel CMOS Sensor
- 30 fps @ 1920x1080
- Smart Stream II to Optimize Bandwidth Efficiency
- EN50155 TX Compliance for Professional Mobile Surveillance
- WDR Pro for improved Visibility in High Contrast Environments
- Vandal-proof IK10-rated and Weather-proof IP67-rated Housing
- Built-in 802.3af Compliant PoE
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
Video Rotation for Corridor Scenario

http://www.vivotek.com

Contact online

About VIVOTEK INC.

VIVOTEK Inc. (TAIEX: 3454) was listed on the TWSE in 2011, and we have established offices in the U.S., Netherlands, India, Mexico, and Japan. As one of the world's most trusted IP surveillance solutions provider, we deliver intelligent security, control, and management for a safer society. With more than 20 years at the forefront of the industry, we’ve driven breakthroughs in R&D, and built a solid technological foundation for the industry. Via a global network of countries, we serve system integrators building intelligent solutions for end-users around the world.
Founded in Taiwan in 2000, we are widely recognized for our expansive technical capabilities in imaging and audio, specializing in IP cameras, video management software, and edge based AI video analytics. In 2021, we unveiled new branding in its transformation towards the IoT age, including logo, brand identity, and a new brand ethos under the slogan “We Get The Picture.”

http://www.vivotek.com

VIVOTEK Inc. (TAIEX: 3454) was founded in Taiwan in 2000. The Company markets VIVOTEK solutions worldwide, and has become a leading brand in the global IP surveillance industry. Its comprehensive solutions include network cameras, video servers, network video recorders, PoE solutions, and video management software. Through the growing proliferation of IoT, VIVOTEK aspires to become the Eye in IoT by drawing on its expansive technological capabilities in image and audio. The Company has established offices and subsidiaries in the United States (California), Europe (Netherlands), India (Delhi), and Latin America (Mexico) in 2008, 2013, 2014, 2015, and 2016, respectively. To create a sound industrial ecosystem, VIVOTEK has expanded strategic alliances with leading international software and hardware partners and works with over 200 authorized distributors across 116 countries. For more information, please visit www.vivotek.com.
