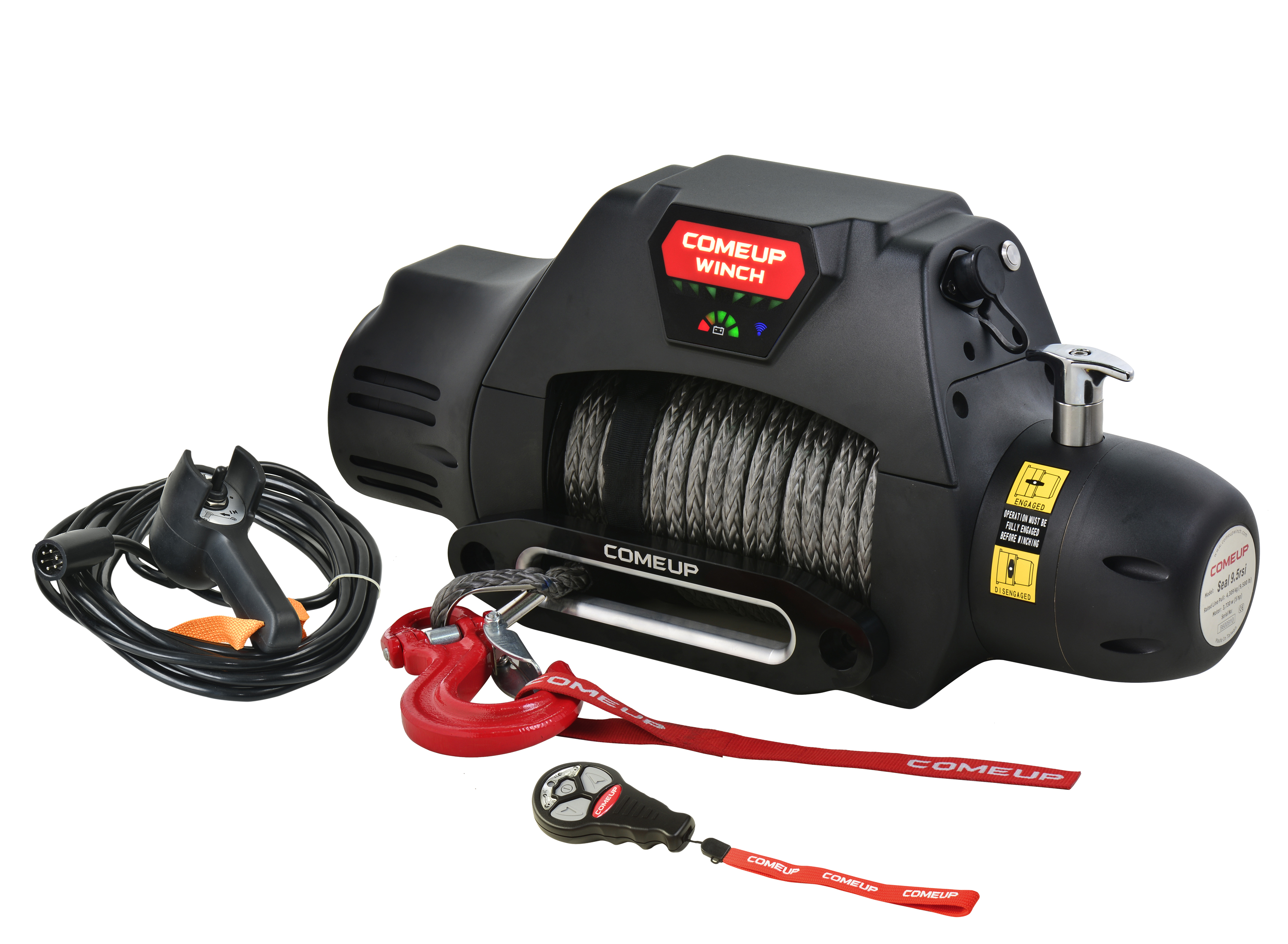

‧ 12V DC severe duty winch rated at 9,500 lb pulling meets or exceeds your expectations.
‧ Heavy duty series wound motor equipped with thermal switch alters when motor over-heating.
‧ Submersible Sealed Contactor: The heavy-duty sealed contactor with silver-alloy contact pads, thick copper buss bars and submersible construction ensures weather resistant. It handles high amps and allows higher duty cycle. The industrial grade contactor is durable, reliable, and high performance.
‧ New Intelligence Dashboard (IDB) functions:
- Vehicle Battery Life : The IDB displays the battery condition of your vehicle
- Cable IN/OUT Direction Indicators: The green triangle icons on the IDB will light sequentially to indicate the rope winding direction. The green triangles will turn to red triangles if the motor is over-heating.
- Thermal Protection: The flashing red temperature icon warning on the IDB indicates the motor is over-heating.
- Wireless Signal Icon: The IDB includes a blue wireless signal icon that is continuously illuminated to confirm the wireless remote is paired with the winch. (only Seal.Gen2 9.5rsi)
‧ Cutout switch activates or deactivates the winch.
‧ Water-proof remote control with thermometric LED indicator w/5 m cord
‧ Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch
‧ 16 equally positioned pin holes with a stainless steel ergonomic T-handle make it possible to reposition in 22.5 degree increments.
‧ A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption
‧ The U.S. Germany, U.K. France, etc patented mechanical cone brake outside the drum expedites heat dispersion. The greater the load on the rope, the greater amount of braking is generated by the mechanism.
‧ Meet SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2004/108/EC.
