Industrial embedded motherboard can be used on many different applications. The different characteristic between industrial and consumer level motherboard is the reliability. Industrial motherboard requires to pass very strict design and testing standard. Make sure the product can be stable working on the equipments and prevent any safety issue.
In general, industrial embedded motherboard has many different sizes for different field. Mini-ITX is one of the most popular sizes for embedded motherboards. Mini-ITX is not the smallest platform, but it can provide the most flexible extension support with mutiple ports. Through industrial design and production, the model creates diversified market applications. It can be applied on automation control, digital signage, human-machine interface (HMI), gaming, medical equipment, vending machine, transportation, and military…etc. Low power consumption creates more cost efficiency and environmental values.

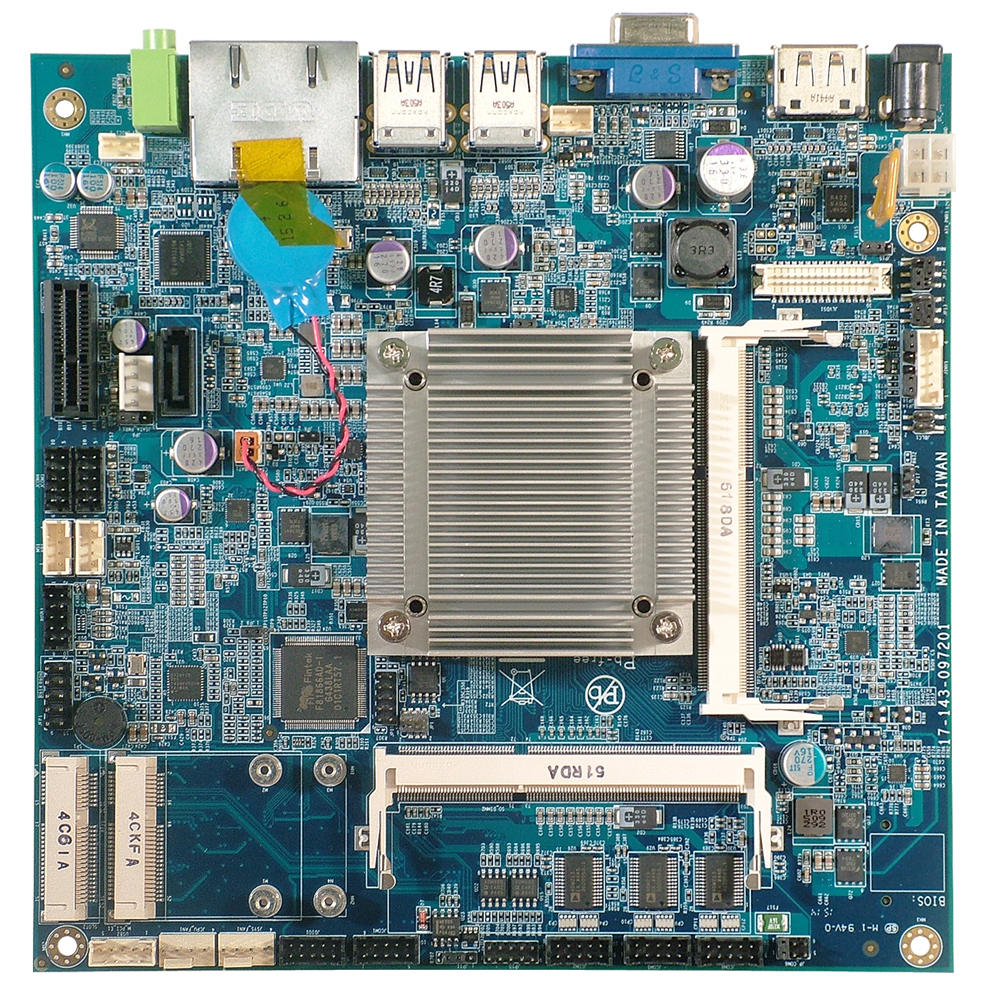

Product introduction:
1). Build in IntelR Braswell process with low power consumption standard Mini-ITX size. Fan-less design without noise and also prevent the heat issue.
2). 7 USB ports, 6 serial ports, Rich I/O for the accessories, DC 12V out, 2 DDR3 low voltage RAM maximum supports 8GB. Create cost efficiency.
3). Triple video output: VGA/display port/ LVDS
4). Support PCIe x 16 interface, it is able to add more PCIe for more functional needs.
5). Two SATA II, one SATA III, one mSATA interface, provide optional storages.
6). Two high speed Giga LAN, supports wake on LAN for many applications of IOT.
Except the complete functions and flexible extensions for many application fields, Protech Mini-ITX motherboard provides serious quality control on form design, production, and testing process to make sure customers have best quality product.
