Seadragon 8 axis under water sonar robot

Industry type：Productivity and energy

Product model number：Seadragon 8 axis

THUNDER TIGER Corp.

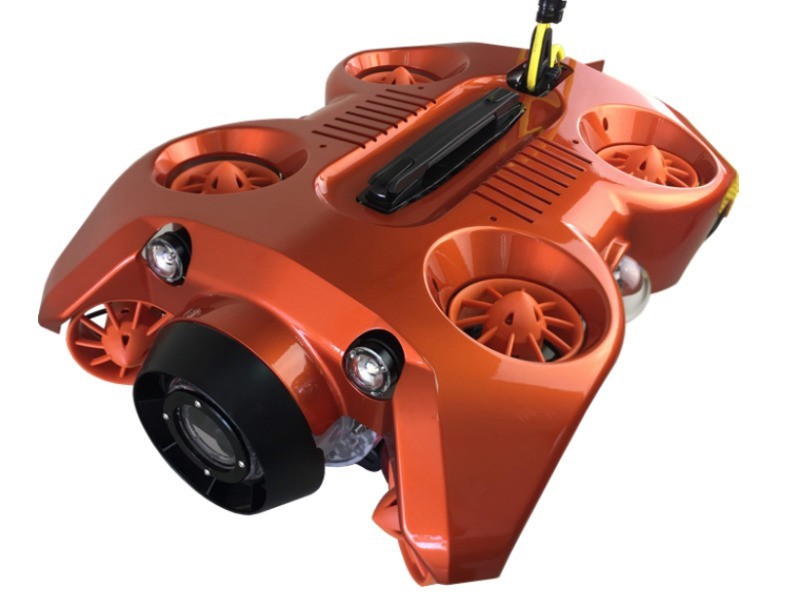

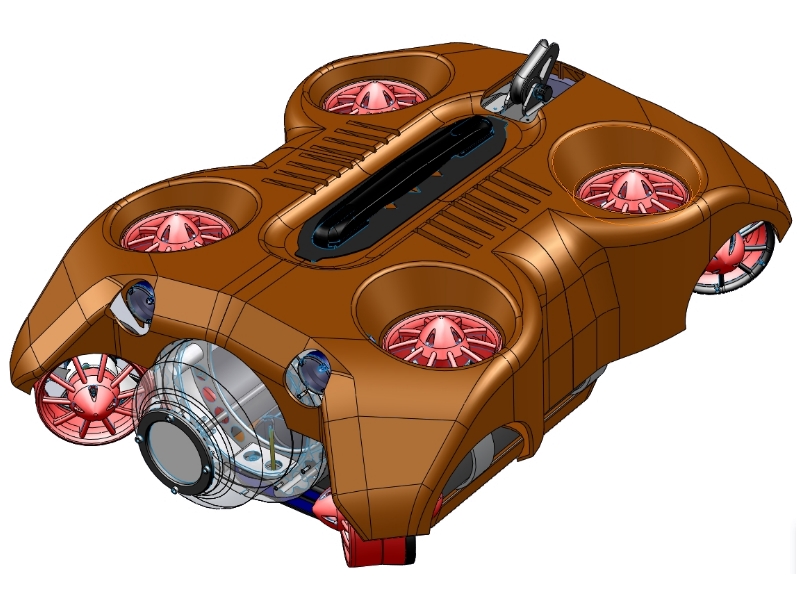

Seadragon 8 axis under water sonar robot

The Seadragon 8 axis underwater sonar robot is a system of ROV which utilizes interchangeable, modular components residing on a single, intelligent network. It allows a large space for inserting extra equipment. This topology provides an extremely flexible and customizable platform which can be easily adapted to target specific missions. It is this flexibility which sets the Mission Specialist ROV series apart from current technology in the Remotely Operated Vehicle industry.
SPECIFICATIONS
●Vision camera:
‧HD with Ethernet interface (IP).
‧60Hz:30fps | 50Hz:25fps.
‧20x zoom lens | 6.0~96mm | 56?~3.6? HF.O.V.
●Brushless Thruster Diameter: 96.5 mm (3.8”).
●Weight(w/o payload): 20 kg ( 44 lbs.).
●Maximum Rated Depth: 100 m (196’).
●Maximum Forward Speed: 7.2 Km/h ( 4 Knots).
●Cable Length: 100m(196‘).
●Power Battery : 4S4P 9000mAh(18650)x2.
●Endurance: 6Hrs.
●Environment: Sea Water / Fresh Water.
●Network Technology: 4G / Ethernet.

http://www.thundertiger.com

Contact online

About THUNDER TIGER Corp.

Thunder Tiger, a professional R/C model brand belongs to Thunder Tiger Group, was born in 1979. Products lines cover all series radio control models, including RC helicopters, RC airplanes, RC cars, RC boats, RC submarines, RC model engines, and RC accessories. Dedicated to RC models market, Thunder Tiger has established its firm position with trustworthiness and innovations.
With core technology in R/C models and eco-conscious on taking good care for the earth, TTC has devoted to the R&D in tools and machines related to agriculture and gardening. Our goal is to reduce pollution, improve quality of life and we take this as our Green Energy Departments’ strategy for future development.

http://www.thundertiger.com

TTRobotix, a new brand from Thunder Tiger Corp., aim for environmental monitoring, meteorology, water conservation, fire protection, military, and other unmanned vehicle market. TTRobotix release water, land and air unmanned vehicle products with gimbal, FPV, and the most popular GoPro camera. Users can completely overlook the landscape of the earth through TTRobotix’ multi-axis device which apply new image transmission technology, HD image transmission systems, and thermal sensing system.
