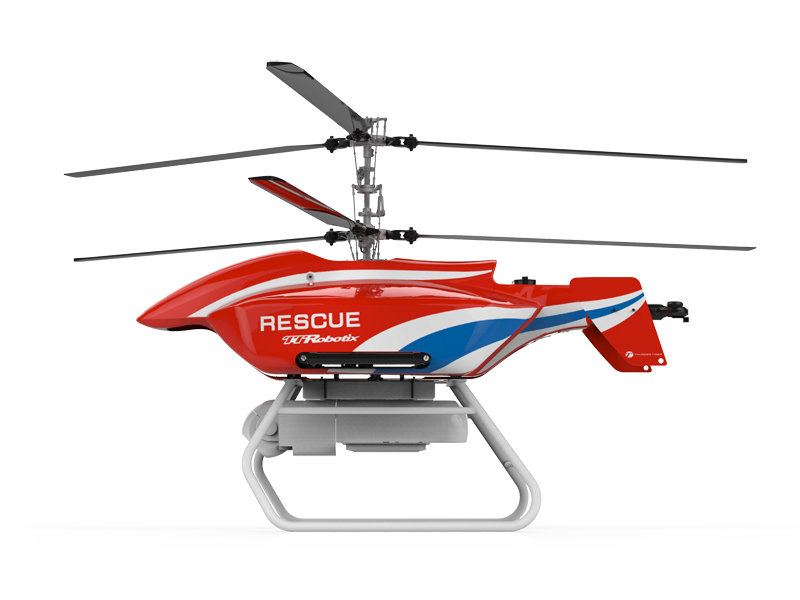

Thermal Imaging & Vital Signs Detecting Radar Rescue UAV

Industry type：Productivity and energy

Product model number：CX-180 TVR

THUNDER TIGER Corp.

Thermal Imaging & Vital Signs Detecting Radar Rescue UAV

Pod type vital signs monitoring and rescue system for UAV
Built-in integrated radar system to monitor the vital signs and heartbeat.
Hover and real time analyze the vital signs then trigger the long range thermal camera to search the survival on the ground.
Detection height is up to 100m and coverage is up to 50m diameter plane.
High efficiency coaxial helicopter
SPECIFICATION
●Vison camera
‧ SONY 1080p 2Mega Starlight CMOS
●Thermal camera
‧ Uncooled Vox microbolometer
‧ 320x256
‧ 6.5mm-f1.0, 34? HF.O.V
●PT platform
‧ 2-axis gyro stabilized gimbal
●Vital signs detecting radar
‧ (SIL)Self-Injection Locked) technology
‧ Power to Demodulator > 15 dBm
‧ Frequency range 2.36 ~ 2.5GHz
‧ Sensing range > 100m
‧ Sensing azimuth > 30(V) & 30(H) degree
●Dimension: L1150mm x W540mm x H906mm
●Max Take off Weight: 35kg
●Power Battery : 6S-LiPo 22000mAh(25C) x 4
●Endurance: 55min(T.O.W 20kg--w/o payload)
25min(T.O.W 29kg) with 10kg payload

http://www.thundertiger.com

Contact online

About THUNDER TIGER Corp.

Thunder Tiger, a professional R/C model brand belongs to Thunder Tiger Group, was born in 1979. Products lines cover all series radio control models, including RC helicopters, RC airplanes, RC cars, RC boats, RC submarines, RC model engines, and RC accessories. Dedicated to RC models market, Thunder Tiger has established its firm position with trustworthiness and innovations.
With core technology in R/C models and eco-conscious on taking good care for the earth, TTC has devoted to the R&D in tools and machines related to agriculture and gardening. Our goal is to reduce pollution, improve quality of life and we take this as our Green Energy Departments’ strategy for future development.

http://www.thundertiger.com

TTRobotix, a new brand from Thunder Tiger Corp., aim for environmental monitoring, meteorology, water conservation, fire protection, military, and other unmanned vehicle market. TTRobotix release water, land and air unmanned vehicle products with gimbal, FPV, and the most popular GoPro camera. Users can completely overlook the landscape of the earth through TTRobotix’ multi-axis device which apply new image transmission technology, HD image transmission systems, and thermal sensing system.
