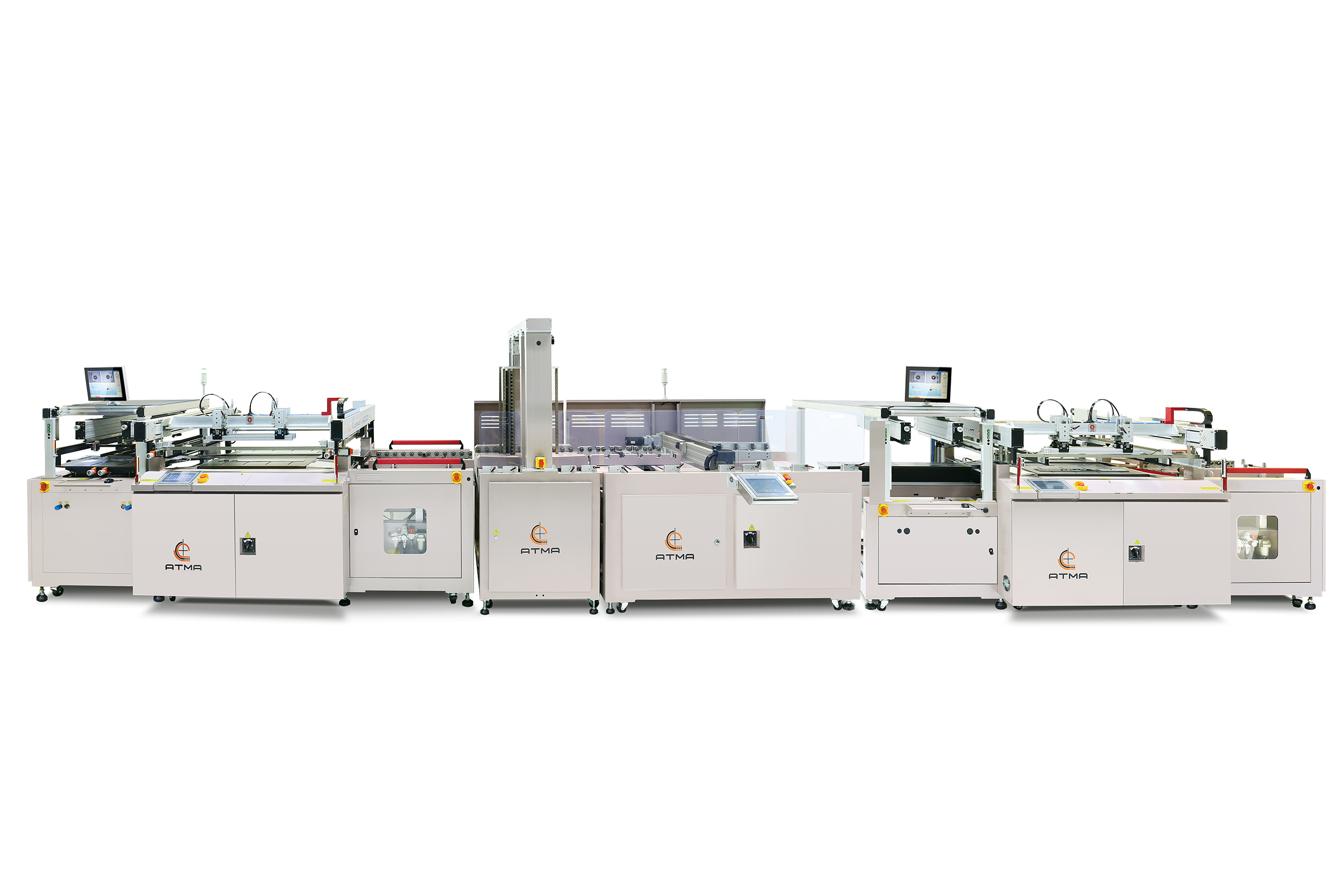

Fully Automatic Legend Screen Printing Line

Industry type：Productivity and energy

Product model number：ATMALINE PC68/PL

ATMA CHAMP ENT. CORP.

Fully Automatic Legend Screen Printing Line

PCB is fundamental industry and is important component for electric products. PCB industry is well matured, plug-via and solder mask printing on current market are mostly to adopt semi-auto or standalone automatic printing, yield rate and productivity are barely satisfactory. Following concept of Industry 4.0, combining customer actual need to design fully automatic printing stream, such as auto feeding→A-side legend printing→buffer stack→auto flipping→B-side legend printing→hanging type dryer→collecting.
Using such automatic production line to reduce labor, another side attains the goal of energy saving & carbon reduction. Among key index is about 40 thousand 0.3 mm micro holes are filled entirely at the same time. Auto registration flipping with clipping arm supports stretching movement (material is undergone multi-processing to cause deformation. The clipping arm stretches toward bilateral side while flipping, stretching substrate flatness facilitates CCD camera to detect registration image, thin panel gains effect more prominent.). Overcome the tooling for first and second side printing, adopts digital control to replace conventional 3-point micro adjustment (if it is unable to adjust precision immediately to attain the requested position, the digitalized control compensation can be used to attain fast precise registration), ensure effective smooth flowing. It is also initiated fully automatic plug-via solder mask printing line to reduce labor reliability and raise productivity, obtained plenty customers favor and appreciation upon releasing.
Providing VIP customer to stay on-site service, fast and efficiency to assist customer setting up printing parameters, sampling, massive production, in-time handling issues, training Operator and Technician to set up production & maintenance system, delete customer worries about the future consequence, achieve many customers positive appraisal

http://www.atma.com.tw

Contact online

About ATMA CHAMP ENT. CORP.

ATMA is specialized in screen printer & ink jet, found in 1979, devoted into R&D, production, marketing over 70 countries, rise into global high tech supply chain.
Persists “committed with top quality”, gained 170 patents worldwide, implement TQM to achieve 23th National Quality Award.
New headquarters is located at Huaya Scientific Park and applied the concept of greening and garden-style factory. This is the biggest screen printer manufacturing center in the world. We provide customer complete service.

http://www.atma.com.tw

ATMA was founded by Mr Chen in 1979, self-brand name was officially promoted in 1982 to produce manual printing table. In 1986, initial pneumatic screen printer was invented on the world. Subsequently, oversea market was expanded. Following Industrial development, high precision, less manpower, intelligentized are defined as long term goal, LOGO graphic cross mark symbolizes High Tech CCD visual registering highlights ATMA pursues PRECISION and extremely TOP QUALITY ATMA logo meaning : ATMA means Advanced signifies excellent, leading ; Taiwan implies Taiwanese self-brand name or Tung Yuan ; Machinery stands for mechanical equipment ; Automation means automated. SPS : ATMA has adopted strategic dual logo since year 2000 to separate market position. Top German brand name SPS cylinder press was incorporated with ATMA in year 2012, Excellent German mechanical craftsmanship combined with high quality efficient production, two parties are combined perfectly complementary.
