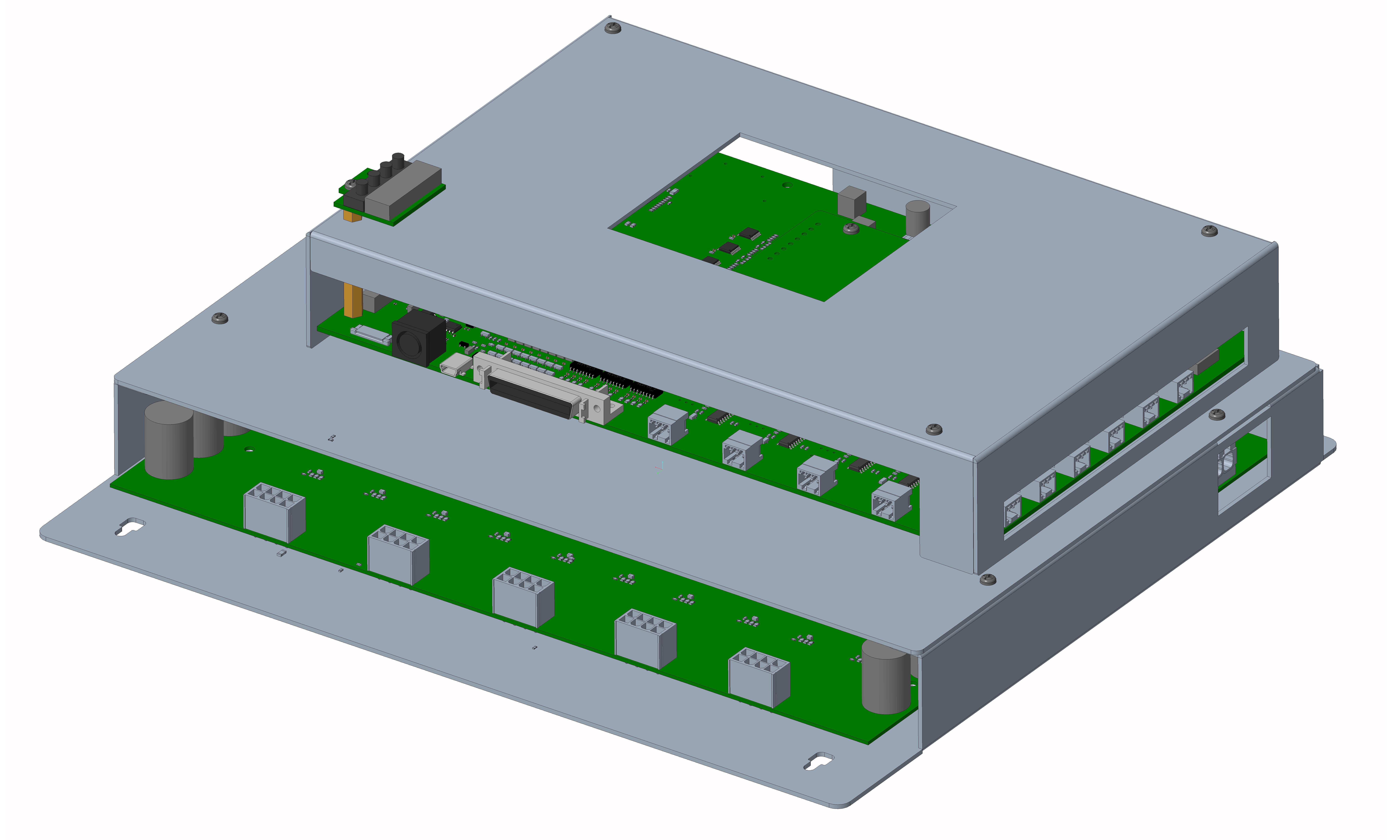

Active Magnetic Bearing Controller

Industry type：Productivity and energy

Product model number：TMBC-006A

TECO ELECTRIC & MACHINERY CO., LTD.

High-speed motors require faster, low-vibration, high-precision and low-friction machinery. Active Magnetic Bearing control technology can match these requirements. This product adopts the best regulator design in which FPGA and MCU are paralleled. It detects the 5-axis motion track and frequency spectrum in current mode. With Gap and temperature sensors, it executes the magnetic bearing control core algorithm to adjust the elastic coefficient (rigidity) and damping of the bearing. . Product features are:
• The rotor has no mechanical friction, making it easier to use in high-speed applications.
• Using the magnetic levitation system, the service life of the equipment is longer than that of the traditional structure.
• Built-in software PID controller, which can realize decoupling control with 5 degrees of freedom.
• Support rotor suspension and eccentric force control.
• 10000RPM, control accuracy up to ISO 14839-2 Zone A.
• Digital control via RS-422/485 communication interface.

http://www.teco.com.tw

Contact online

About TECO ELECTRIC & MACHINERY CO., LTD.

Founded in 1956 for motor manufacturing, TECO Electric & Machinery forms a green-energy ecological system, capable of providing solutions for energy generation, energy storage, and energy conservation.
For its core electromechanical products, TECO has continued to develop low-carbon industrial solution air system solutions, automated and intelligent products, and optimal energy-conservation, emission-reduction solutions. Concerning green energy, it has been engaged in offshore wind power onshore substations, PV power stations, and energy storage systems, contributing to energy transformation for smart cities. In addition, it has stepped into the production of e-vehicle powertrain, helping with development of smart energy-conserving urban life.
TECO aims to attain "carbon neutrality" and strives to materialize its corporate mission of "energy conservation, emission reduction, intelligence, and automation," in order to create a sustainable future.

http://www.teco.com.tw

Based on its core technologies in electromechanical integration, energy-related engineering, and air solutions, TECO’s three major business groups will serve as the key cornerstones of the internal ecosystem, while the inter-business products and technologies are applied in six major areas areas: smart manufacturing, EV powertrain system, smart energy grid/storage system, offshore wind power business, smart logistics, and smart city applications. In addition, with the ultimate goal of "carbon neutrality", TECO will continue to realize the corporate sustainability and the company vision of “energy conservation, emissions reduction, Intelligence and automation”.
