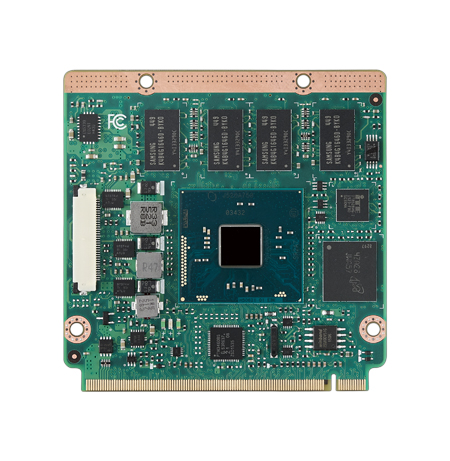

SOM-3568 Low Power Fanless Highly Integrated QSeven CPU Module

Industry type：PC and software

Product model number：SOM-3568

Advantech Co., Ltd.

SOM-3568 Low Power Fanless Highly Integrated QSeven CPU Module

Advantech SOM-3568 is a new, low power, fanless, Qseven CPU Module. This CPU module comes equipped with the latest 14nm IntelR PentiumR and CeleronR N3000 series processors, which lower TDP to 4W/5W/6W for better power savings and less heat, yet with high performance. With its onboard memory and onboard eMMC storage capability, SOM-3568 is suitable for small form-factor, battery powered, and ruggedized applications in fields such as industrial automation, medical, military, and portable instruments.

Driving Rich Media Content
SOM-3568, featuring low-power IntelR gen 8 graphics integrated in the SoC with up to 16 execution units, provides two times the graphics performance of previous generation platforms, and supports the latest DX11.1, OpenGL 4.2, OpenGL ES 3.0, OpenCL 1.2, plus hardware acceleration for VP8, VP9 and HEVC/ H.265 codecs. In addition, SOM-3568 provides next-generation 4K display resolutions via various display interfaces e.g., LVDS, eDP, HDMI, and DisplayPort, and allows triple simultaneous independent content displays.

High Expansion Flexibility
SOM-3568 integrates a rich array of I/O interfaces including 4 PCIe x1 ports (without GbE) or one PCIe x4, up to 3 USB3.0 and 5 USB2.0, and LPC for legacy expansion interfaces. It also provides high bandwidth, onboard, dual-channel DDR3-1600 capacity for up to 8GB of system memory, and optional onboard storage with eMMC 4.51 specifications providing integrated, rugged, space saving storage at an attractive low cost. These sufficient I/O interfaces on a highly integrated system make the SOM-3568 ideal for portable and ruggedized applications.
